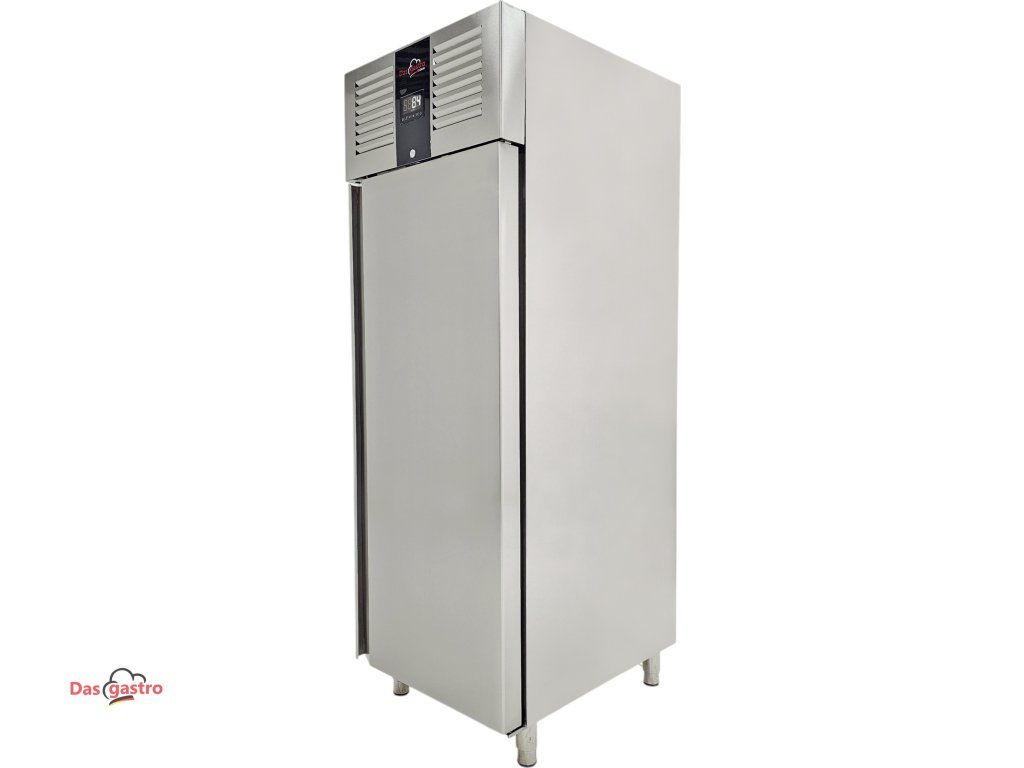

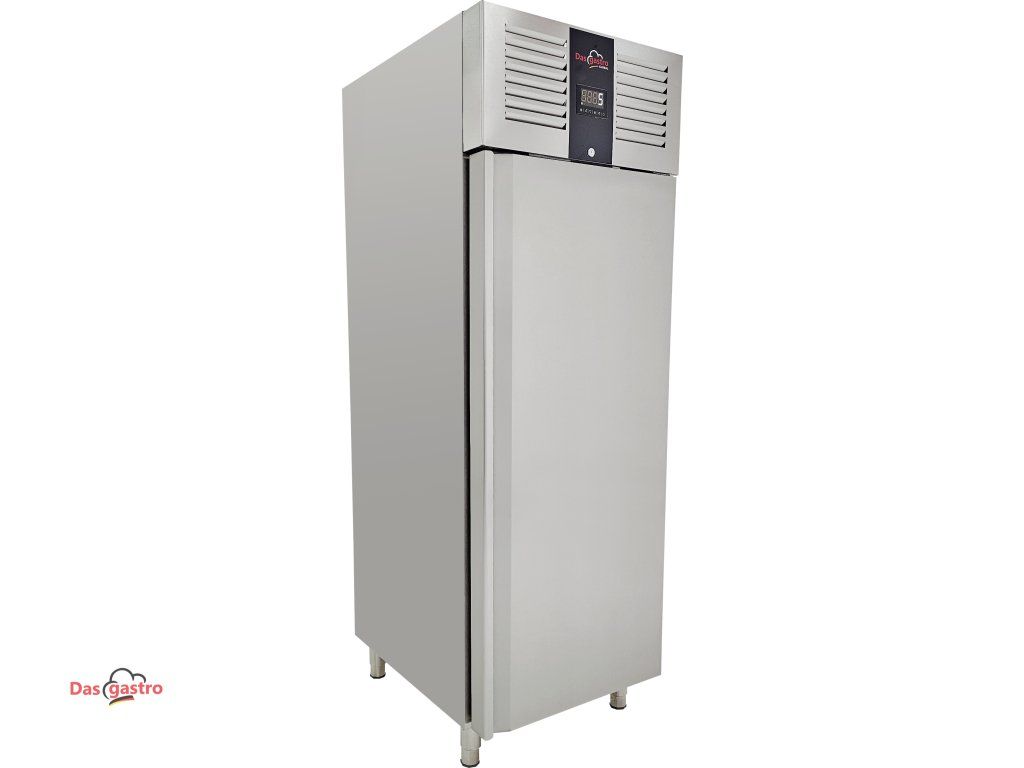

X-Series Refrigerated Cabinet – 650 L – 1 door – ventilated cooling (90 mm insulation)

Product detailed description

The X-Series refrigerated display case is designed for professional use in the food service industry. Thanks to its ventilated cooling system, it ensures even temperature distribution throughout the entire interior, which is key to proper food storage.

The temperature range of +2 °C to +8 °C allows for a wide range of applications in kitchens, bars, and stores. Energy-efficient operation and the eco-friendly R600a refrigerant ensure lower energy consumption and environmental friendliness.

Key Features

• Solid 90 mm insulation: One of the thickest insulations on the market ensures minimal heat loss and high energy savings.

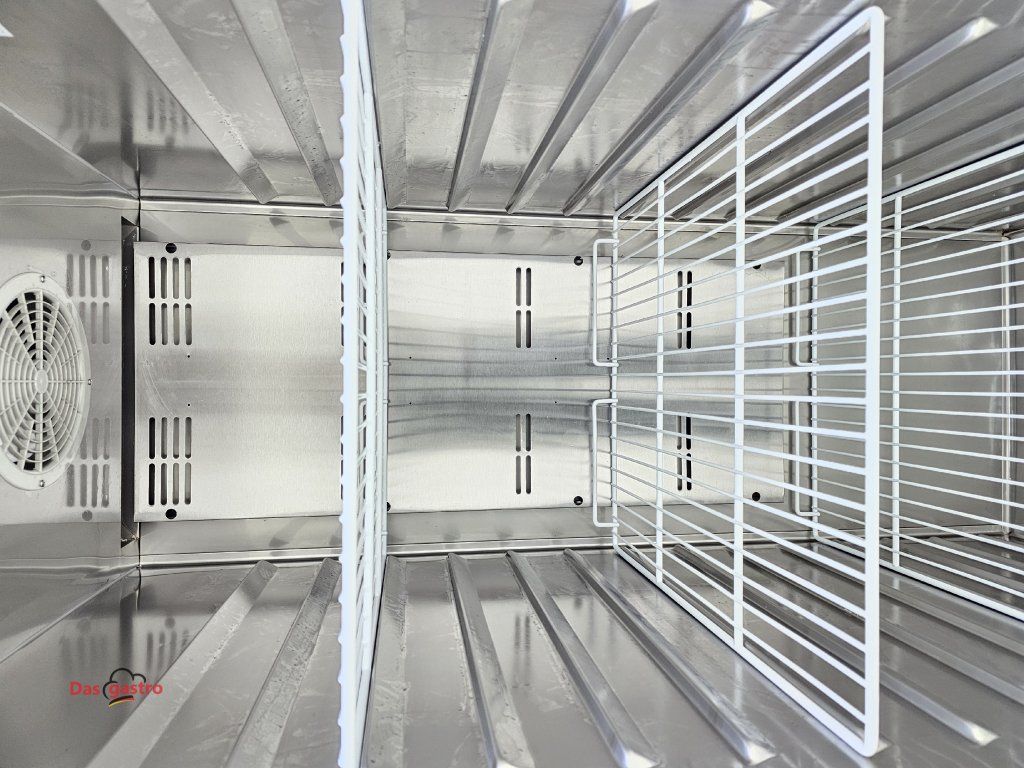

• Direct GN insertion (no shelves): The interior walls are equipped with embossed holders that serve as rails. This allows you to slide GN 2/1 containers directly into the unit, which is ideal for fast-paced kitchen operations.

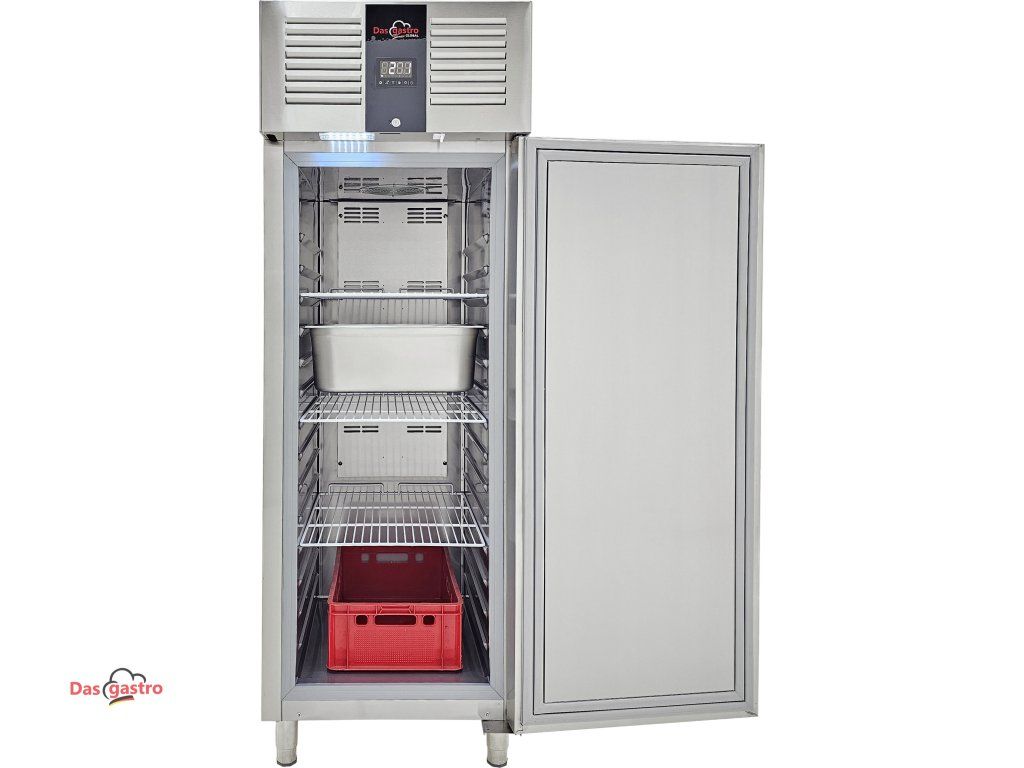

• Suitable for the meat industry: The interior dimensions are precisely designed for easy loading of standard E2 butcher’s (meat) crates.

• High load capacity and hygiene: The embossed slots eliminate the need for bolted rails. This increases the overall load capacity and stability and facilitates cleaning (the interior has no seams or sharp edges).

• Double seals: Magnetic door seals in a double configuration for perfect insulation.

Product Benefits and Specifications

• Ventilated cooling: For uniform temperature throughout the entire interior.

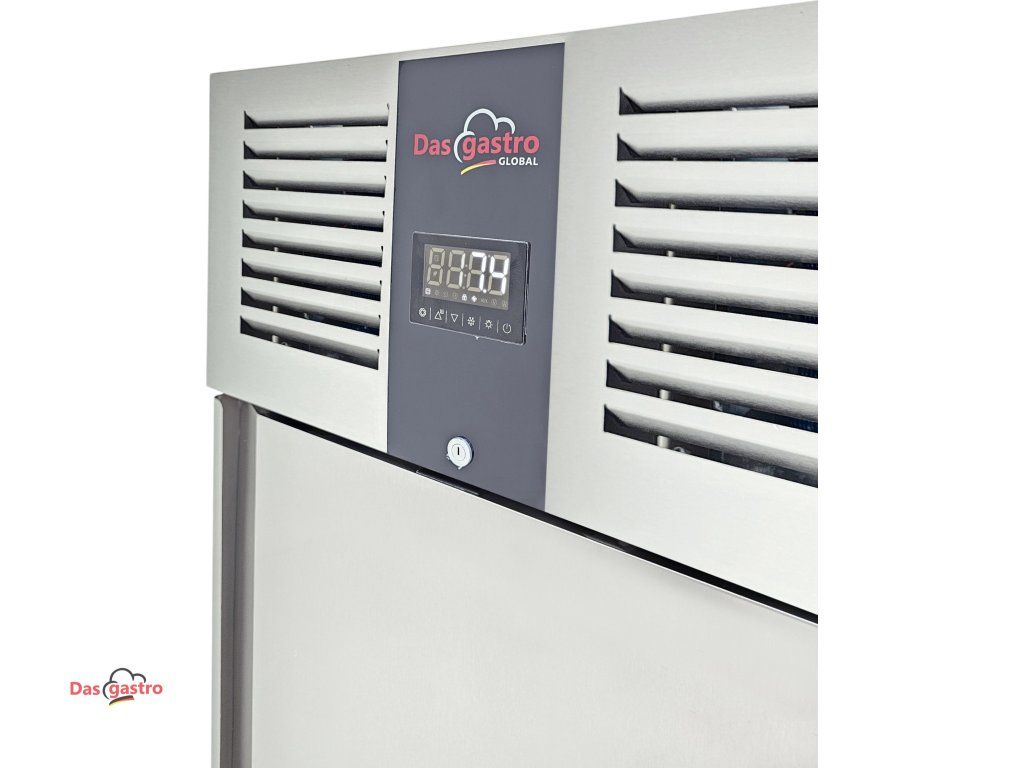

• Digital controls: Precise regulation and a clear display.

• Self-closing door: Spring-loaded hinges save energy and make it easier to use the refrigerator when your hands are full.

• Eco-friendly R600a refrigerant: A modern, environmentally friendly system.

• Stainless steel construction: Durability and a long service life in a professional environment.

Technical Specifications

• Dimensions (W × D × H): 740 × 830 × 2010
mm• Capacity: 650 L•
Insulation thickness: 90 mm•
Shelving system: Embossed side panels (suitable for GN 2/1 and E2 containers)
• GN container placement: Can be placed directly into the slots (no shelves required)
• Temperature range: +2 °C to +8
°C• Power consumption: 120 W•
Voltage: AC 230 V•
Current: 0.81
A• Refrigerant type:
R600a• Refrigerant charge: 70 g•
Climate class: N

Scope of Delivery

•

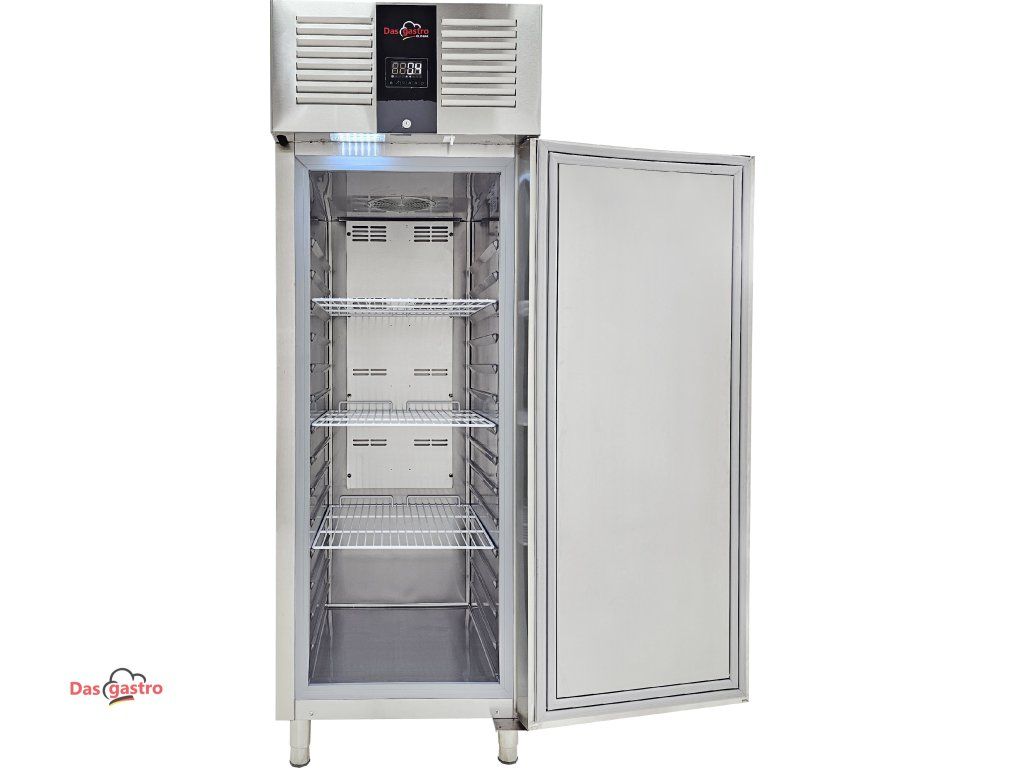

Premium refrigerated cabinet• 3× reinforced wire shelves (530 × 620 mm)
• Set of keys for the door lock
